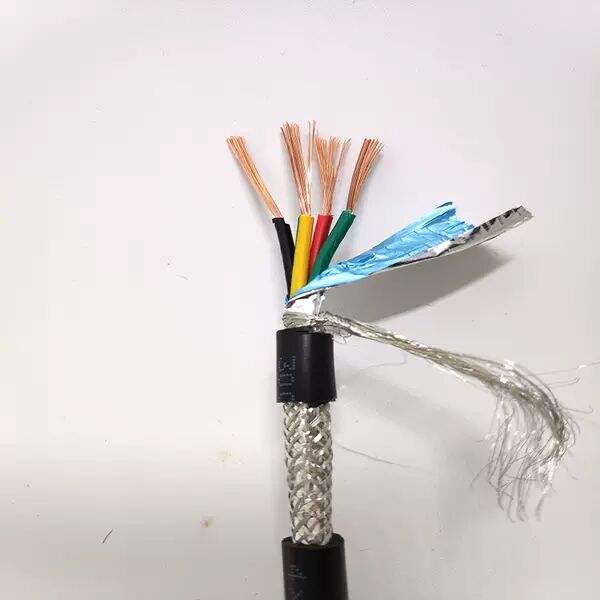

- 商品名称：YGCR 3*35+1*16 硅橡胶绝缘硅橡胶护套移动用电力软电缆
- 添加时间：2021-12-03 10:05:09
- 推荐度：
介绍：
基本型号及名称
| 型号 | 产品名称 |
| YGC | 硅橡胶绝缘硅橡胶护套电力电缆 |
| YGCR | 硅橡胶绝缘硅橡胶护套移动用电力软电缆 |
| YGCP | 硅橡胶绝缘硅橡胶护套铜编织屏蔽电力电缆 |
| YGC22 | 硅橡胶绝缘硅橡胶护套钢带铠装电力电缆 |
| JGG | 硅橡胶绝缘硅橡胶护套安装线 |
| JGGR | 硅橡胶绝缘硅橡胶护套移动用安装软线 |
| JGGP | 硅橡胶绝缘硅橡胶护套铜编织屏蔽安装线 |
| JHXG | 硅橡胶绝缘电机引接线 |
备注：阻燃型硅橡胶电缆型号前加ZR，导体线芯中铜丝可以采用镀锡。
硅橡胶绝缘硅橡胶护套移动用电力软电缆代号名称和含义
| 代号 | 代号含义 |
| Y | 系列代号移动软电缆 |
| G | 硅橡胶 |
| C | 重型 |
| 22 | 钢带铠装 |
| P | 铜编织屏蔽 |
| R | 多股绞合导体 |
| J | 电机引接线 |
硅橡胶电缆基本电缆规格及结构参数
| 线芯*标称截面mm2 | 导体结构 根数*直径 B/R mm | 电缆zui大外径mm | 参考重量kg/km | ||
YGC JGGF | YGCR JGGFR | YGCR JGGFR | YGC22 JGG22 | ||
| 1*1.5 | 19*0.32/48*0.20 | 3.2 | 3.5 | 27.5 | |
| 1*2.5 | 19*0.41/51*0.25 | 3.7 | 3.9 | 38.6 | |
| 1*4 | 19*0.52/82*0.25 | 4.6 | 5.2 | 55.5 | |
| 1*6 | 19*0.65/123*0.25 | 5.6 | 6.5 | 77.7 | |
| 1*10 | 48*0.52/204*0.25 | 7.2 | 7.8 | 132 | |
| 1*16 | 75*0.52/323*0.25 | 8.2 | 9.0 | 188 | |
| 1*25 | 108*0.52/513*0.25 | 10.2 | 11.0 | 312 | |
| YGCR1*35 | 108*0.65/722*0.25 | 112 | 12.0 | 408 | |
| YGCR1*50 | 10*2.52/1026*0.25 | 13.5 | 14.5 | 554 | |
| YGCR1*70 | 19*2.16/1406*0.25 | 16.5 | 17.5 | 762 | |
| YGCR1*95 | 19*2.52/486*0.50 | 19.0 | 20.5 | 1045 | |
| YGCR1*120 | 24*2.52/608*0.50 | 20.0 | 22.0 | 1281 | |
| 1*150 | 30*2.52/760*0.50 | 21.0 | 24.2 | 1612 | |
| 1*185 | 37*2.52/945*0.50 | 25.0 | 28.0 | 1981 | |
| 2*2.5 | 7*0.68/51*0.25 | 10.5 | 11.2 | 158 | 272 |
| 2*4 | 19*0.52/82*0.25 | 12 | 13.2 | 210 | 347 |
| 2*6 | 19*0.65/123*0.25 | 14.0 | 15.3 | 263 | 407 |
| 2*10 | 7*1.37/204*0.25 | 17.8 | 18.9 | 394 | 562 |
| 2*16 | 7*1.70/323*0.25 | 20.0 | 21.2 | 540 | 724 |
| 2*25 | 7*2.15/513*0.25 | 23.0 | 24.5 | 794 | 828 |
| 2*35 | 7*2.52/722*0.25 | 25.7 | 26.3 | 1037 | 1037 |
| 2*50 | 10*2.52/1026*0.25 | 26.0 | 27.5 | 1236 | 1385 |
| 2*70 | 19*2.16/1406*0.25 | 27.0 | 28.9 | 1647 | 1792 |
| 2*95 | 19*2.52/486*0.50 | 32.0 | 33.9 | 2189 | 2654 |
| 2*120 | 24*2.52/608*0.50 | 45.0 | 48.0 | 2640 | 3180 |
| 2*150 | 30*2.52/760*0.50 | 52.0 | 57.0 | 3280 | 3920 |
| 2*185 | 37*2.52/945*0.50 | 60.0 | 65.0 | 4006 | 4768 |
| 3*1.5 | 7*0.52/48*0.20 | 9.7 | 10.7 | 150 | 291 |
| 3*2.5 | 7*0.68/51*0.25 | 11.7 | 12.2 | 196 | 342 |
| 3*4 | 19*0.52/82*0.25 | 12.6 | 13.5 | 274 | 444 |
| 3*6 | 19*0.65/123*0.25 | 14.8 | 16.2 | 350 | 531 |
| 3*10 | 7*1.37/204*0.25 | 20.0 | 22.0 | 539 | 737 |
| 3*16 | 7*1.70/323*0.25 | 22.0 | 24.5 | 740 | 972 |
| 3*25 | 7*2.15/513*0.25 | 25.3 | 27.0 | 1139 | 1372 |
| 3*35 | 7*2.52/722*0.25 | 28.0 | 31.5 | 1480 | 1729 |
| YGCR3*50 | 10*2.52/1026*0.25 | 32.0 | 37.5 | 1900 | 2405 |
| 3*70 | 19*2.16/1406*0.25 | 41.0 | 50.0 | 4061 | 3087 |
| 3*95 | 19*2.52/486*0.50 | 45.0 | 55.0 | 997 | 4003 |
| 3*120 | 24*2.52/608*0.50 | 50.0 | 60.0 | 4060 | 4887 |
| 3*150 | 30*2.52/760*0.50 | 60.0 | 65.0 | 5197 | 2995 |
| 3*185 | 37*2.52/945*0.50 | 65.0 | 70.0 | 6279 | 7262 |
| 3*4+1*2.5 | 19*0.52/82*0.25 | 14.5 | 15.5 | 320 | 481 |
| 3*6+1*4 | 19*0.65/123*0.25 | 16.2 | 17.8 | 423 | 597 |
| 3*10+1*6 | 7*1.37/204*0.25 | 21.0 | 23.0 | 630 | 827 |
| 3*16+1*10 | 7*1.70/323*0.25 | 23.0 | 25.0 | 888 | 1255 |
| 3*25+1*16 | 7*2.15/513*0.25 | 27.0 | 29.0 | 1375 | 1578 |
| YGCR3*35+1*16 | 7*2.52/722*0.25 | 32.3 | 35.0 | 1690 | 1927 |
| 3*50+1*25 | 10*2.52/1026*0.25 | 36.0 | 40.0 | 2175 | 2760 |
| 3*70+1*35 | 19*2.16/1406*0.25 | 40.0 | 44.0 | 2950 | 3546 |
| 3*95+1*50 | 19*2.52/486*0.50 | 46.0 | 52.0 | 3950 | 4670 |
| 24*2.52/608*0.50 | 51.0 | 55.0 | 4800 | 5745 | |
| 3*150+1*70 | 30*2.52/760*0.50 | 56.0 | 60.0 | 5810 | 6862 |
| 3*185+1*95 | 37*2.52/945*0.50 | 66.0 | 70.0 | 7200 | 8394 |
| 4*4 | 19*0.52/82*0.25 | 14.2 | 16.2 | 352 | 515 |
| 4*6 | 19*0.65/123*0.25 | 17.1 | 19.0 | 450 | 629 |
| 4*10 | 7*1.37/204*0.25 | 22.1 | 24.0 | 672 | 881 |
| 4*16 | 7*1.70/323*0.25 | 24.5 | 26.5 | 952 | 1176 |
| 4*25 | 7*2.15/513*0.25 | 27.0 | 31.5 | 1476 | 1673 |
| 4*35 | 7*2.52/722*0.25 | 33.0 | 35.5 | 1876 | 2142 |
| 硅橡胶电缆4*50 | 10*2.52/1026*0.25 | 39.0 | 41.0 | 2392 | 2982 |
| 4*70 | 19*2.16/1406*0.25 | 41.0 | 44.0 | 3300 | 3871 |
| 4*95 | 19*2.52/486*0.50 | 47.0 | 50.0 | 4300 | 5094 |
| 4*120 | 24*2.52/608*0.50 | 49.0 | 54.0 | 5380 | 6187 |
| 4*150 | 30*2.52/760*0.50 | 56.0 | 60.0 | 6750 | 7596 |
| 4*185 | 37*2.52/945*0.50 | 68.0 | 72.0 | 8190 | 9194 |
产品特点及用途:本产品适用于交流额定电压0.6/1KV及以下固定敷设用动力传输线或移动电器用连接电缆，产品具有耐热辐射、耐寒、耐酸碱及腐蚀性气体、防水等特性，电缆结构柔软，辐射方便，高温高寒环境下电气性能稳定，抗老化性能突出，使用寿命长，广泛用于冶金、电力、石化、电子、汽车制造等行业。
硅橡胶电缆YGCR 3*50产品执行标准
阻燃耐火特性试验执行GB12666-90要求
硅橡胶电缆YGCR 3*50使用特性
1． 硅橡胶绝缘硅橡胶护套移动用电力软电缆交流额定电压：U0/U 0.6/1KV
zui高工作温度： 180℃
zui低环境温度：固定敷设-60℃
2．硅橡胶绝缘硅橡胶护套移动用电力软电缆安装敷设温度应不低于-25℃。
3． 电缆允许弯曲半径：电缆zui小为电缆外径的10倍
