- 商品名称：CHV8292、CHEFP船用通信电缆
- 添加时间：2023-07-13 09:51:05
- 推荐度：

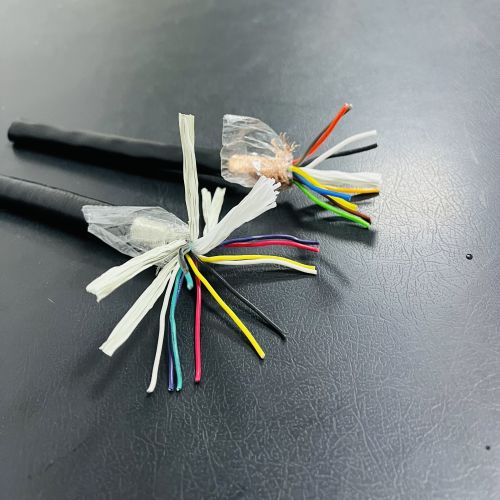

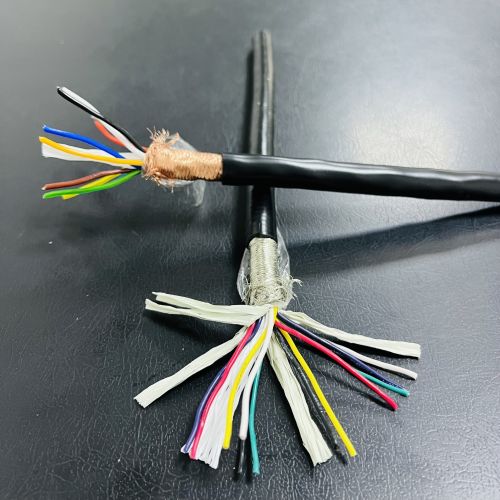

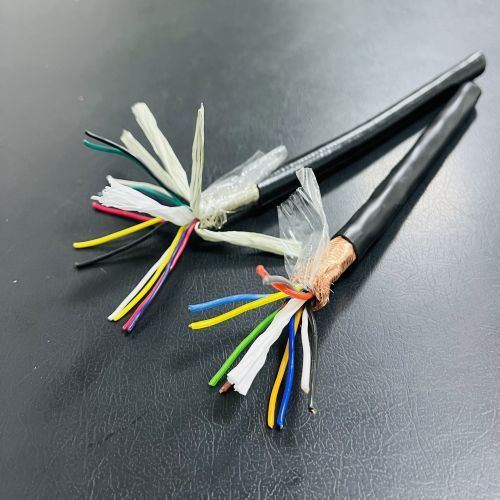

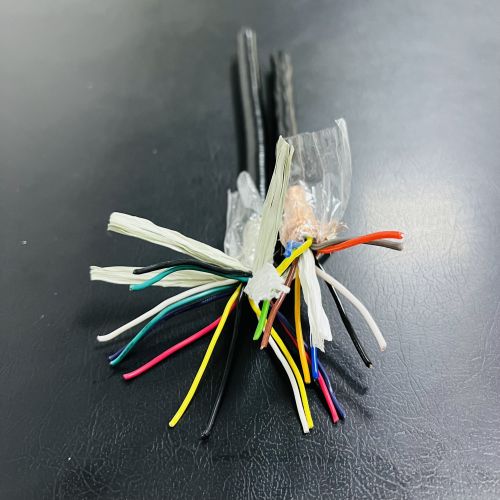

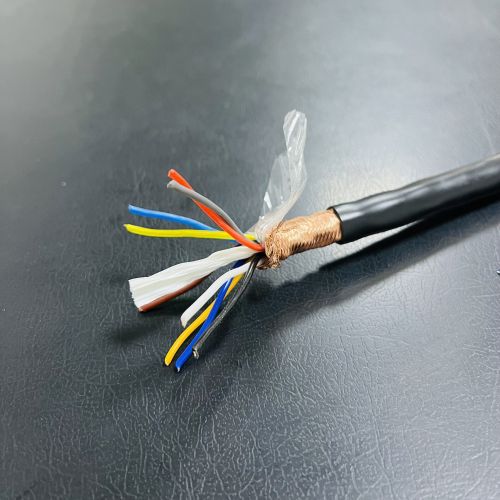

CHV8292、CHEFP船用通信电缆
CHV8292、CHEFP船用通信电缆应用：产品用于各种船舶通信、电子计算机、信息处理设备中的信号传输和控制系统。
CHV8292、CHEFP船用通信电缆电气性能：
电缆外观 ：圆整光洁
温度范围 ：-10℃ +90℃
额定电压 ：450/750V
耐压实验 ：3500V
CHV8292、CHEFP船用通信电缆机械性能：
电缆性能 ：信息处理，阻燃，信号传输
敷设时电缆弯曲半径: | ||
电缆结构特征 | 电缆外径D | 弯曲半径*小 |
金属编织铠装型 | 任何值 | 6D |
非铠装型 | D<=25 | 4D |
D＞25 | 6D | |
CHV8292、CHEFP船用通信电缆每圈或每盘上应附有标签标明：
制造厂www.hejindianlan.com
型号、规格mm2；
额定电压，V；
长度，m(质量，kg)；
制造日期 年 月；
准编号或认证标志；
电缆盘旋转方向。
代号 | 定义 | 代号 | 定义 |
Codes | Definition | Codes | Definition |
D | 单根燃烧 | A | 有烟有酸有毒 |
Combustion for single cable | have smoke acidity and toxicity | ||
S | 成束燃烧 | B | 低烟低酸低毒 |
Combustion for bunched cable | low smokelow aciditylow toxicity | ||
N | 耐火(单根燃烧) | C | 无卤低烟低毒 |
Fire-proof(Combustion for single cable) | Halogen freelow smokelow toxicity | ||
代号 | 绝缘 | 代号 | 内套 |
Codes | Insul-ation | Codes | Inners-heath |
E | 乙丙橡 | F | 氯丁橡 |
胶绝缘 | 胶护套 | ||
EP- | Chlorosu-lconation | ||
rubber insulated | sheath | ||
J | 交联聚乙 | V | 聚氯乙烯护套 |
烯绝缘 | Polyvinyl-chloride sheath | ||
XLPE Insulation | |||
V | 聚氯乙烯 | PF | 热塑性聚 |
绝缘 | 烯烃护套 | ||
PVC Insulation | Thermosp-lasticity polyolefin | ||
sheath | |||
天然丁苯绝缘 | PJ | 交联聚烯 | |
NR/SBR insulated | 烃护套 | ||
Cross | |||
-linked | |||
polyolefin sheath | |||
8 | 镀锡铜 | 0 | 无外护套 |
丝编织 | NO-Outer | ||
Tinned | sheath | ||
Cu | |||
wire woven | |||
9 | 镀锌钢丝编织 | 2 | 聚氯乙烯 |
Galvanizes Steel wire woven | 护套 | ||
Polyvinyl chloride sheath | |||
- | - | 5 | 交联聚烯烃 |
护套 | |||
Cross | |||
-linked | |||
polyolefin | |||
sheath | |||
- | - | 6 | 热塑性聚 |
烯烃护套 | |||
Thermosp-lasticity polyolefin | |||
sheath |
电缆规格选型表 | |||||
1*0.2 | 1*0.3 | 1*0.5 | 1*0.75 | 1*1.5 | 1*2.5 |
2*0.2 | 2*0.3 | 2*0.5 | 2*0.75 | 2*1.5 | 2*2.5 |
3*0.2 | 3*0.3 | 3*0.5 | 3*0.75 | 3*1.5 | 3*2.5 |
4*0.2 | 4*0.3 | 4*0.5 | 4*0.75 | 4*1.5 | 4*2.5 |
5*0.2 | 5*0.3 | 5*0.5 | 5*0.75 | 5*1.5 | 5*2.5 |
6*0.2 | 6*0.3 | 6*0.5 | 6*0.75 | 6*1.5 | 6*2.5 |
7*0.2 | 7*0.3 | 7*0.5 | 7*0.75 | 7*1.5 | 7*2.5 |
8*0.2 | 8*0.3 | 8*0.5 | 8*0.75 | 8*1.5 | 8*2.5 |
9*0.2 | 9*0.3 | 9*0.5 | 9*0.75 | 9*1.5 | 9*2.5 |
10*0.2 | 10*0.3 | 10*0.5 | 10*0.75 | 10*1.5 | 10*2.5 |
11*0.2 | 11*0.3 | 11*0.5 | 11*0.75 | 11*1.5 | 11*2.5 |
12*0.2 | 12*0.3 | 12*0.5 | 12*0.75 | 12*1.5 | 12*2.5 |
13*0.2 | 13*0.3 | 13*0.5 | 13*0.75 | 13*1.5 | 13*2.5 |
14*0.2 | 14*0.3 | 14*0.5 | 14*0.75 | 14*1.5 | 14*2.5 |
15*0.2 | 15*0.3 | 15*0.5 | 15*0.75 | 15*1.5 | 15*2.5 |
16*0.2 | 16*0.3 | 16*0.5 | 16*0.75 | 16*1.5 | 16*2.5 |
17*0.2 | 17*0.3 | 17*0.5 | 17*0.75 | 17*1.5 | 17*2.5 |
18*0.2 | 18*0.3 | 18*0.5 | 18*0.75 | 18*1.5 | 18*2.5 |
19*0.2 | 19*0.3 | 19*0.5 | 19*0.75 | 19*1.5 | 19*2.5 |
20*0.2 | 20*0.3 | 20*0.5 | 20*0.75 | 20*1.5 | 20*2.5 |
21*0.2 | 21*0.3 | 21*0.5 | 21*0.75 | 21*1.5 | 21*2.5 |
22*0.2 | 22*0.3 | 22*0.5 | 22*0.75 | 22*1.5 | 22*2.5 |
23*0.2 | 23*0.3 | 23*0.5 | 23*0.75 | 23*1.5 | 23*2.5 |
24*0.2 | 24*0.3 | 24*0.5 | 24*0.75 | 24*1.5 | 24*2.5 |
25*0.2 | 25*0.3 | 25*0.5 | 25*0.75 | 25*1.5 | 25*2.5 |
26*0.2 | 26*0.3 | 26*0.5 | 26*0.75 | 26*1.5 | 26*2.5 |
27*0.2 | 27*0.3 | 27*0.5 | 27*0.75 | 27*1.5 | 27*2.5 |
28*0.2 | 28*0.3 | 28*0.5 | 28*0.75 | 28*1.5 | 28*2.5 |
29*0.2 | 29*0.3 | 29*0.5 | 29*0.75 | 29*1.5 | 29*2.5 |
30*0.2 | 30*0.3 | 30*0.5 | 30*0.75 | 30*1.5 | 30*2.5 |
www.hejindianlan.com | |||||
