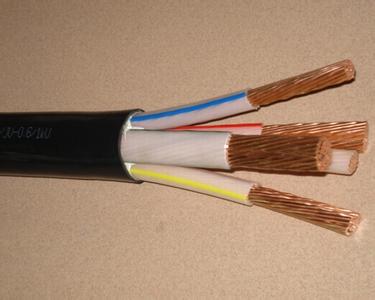

YJV22，YJLV22，YJV32，YJLV32电力电缆
一、适用范围
本产品适用于35kV及以下电力系统中，可用于输电系统和配电系统，作电力的载体。
二、执行标准
1、 GB/T 12706.2 《额定电压1kV（Um=1.2kV）到35kV（Um=40.5kV）挤包绝缘电力电缆及附件 第2部分：额定电压6kV（Um=7.2kV）到30kV（Um=36kV）》
2、GB/T 12706.3 《额定电压1kV（Um=1.2kV）到35kV（Um=40.5kV）挤包绝缘电力电缆及附件 第3部分：额定电压35kV（Um=40.5kV）电缆》
【三芯交联聚乙烯绝缘电力电缆】18/20kV 18/30kV三芯交联聚乙烯绝缘电力电缆18/20kV 18/30kV
芯数×标称截面 Number and -sectional area mm2 | 绝缘厚度 Insulation thickness mm | YJV YJLV YJY YJLY | YJV22 YJLV22 YLV23 YJLV23 | YJV32 YJLV32 YJV33 YJLV33 | ||||||
电缆计算外径 Approx overall diameter mm | 电缆大重量 Cable weight,max kg/km | 电缆计算外径 Approx overall diameter mm | 电缆大重量 Cable weight,max Kg/km | 电缆计算外径 Approx overall diameter mm | 电缆大重量 Cable weight,max kg/km | |||||
YJV YJY | YJLV YJLY | YJV22 YJV23 | YJLV22 YJLV23 | YJV32 YJV33 | YJLV32YJLV33 | |||||
3×50 | 9.3 | 75.1 | 5560 | 4640 | 82.7 | 8280 | 7340 | 86.0 | 10890 | 9960 |
3×70 | 9.3 | 78.6 | 6450 | 5160 | 86.3 | 9280 | 7990 | 89.6 | 12030 | 10740 |
3×95 | 9.3 | 82.5 | 7490 | 5730 | 90.4 | 10500 | 8740 | 93.7 | 13430 | 11670 |
3×120 | 9.3 | 85.7 | 8470 | 6260 | 93.7 | 11630 | 9420 | 97.0 | 14630 | 12420 |
3×150 | 9.3 | 89.4 | 9640 | 6860 | 97.5 | 12970 | 10200 | 100.8 | 16100 | 13330 |
3×185 | 9.3 | 92.8 | 10920 | 7500 | 101.1 | 14420 | 11010 | 104.4 | 17680 | 14260 |
3×240 | 9.3 | 98.1 | 12950 | 8520 | 106.6 | 16690 | 12260 | 109.9 | 20140 | 15710 |
3×300 | 9.3 | 103.1 | 15060 | 9520 | 111.8 | 18990 | 13450 | 115.1 | 22610 | 17070 |
3×400 | 9.3 | 110.1 | 18520 | 11120 | 119.0 | 22820 | 15430 | 122.3 | 26680 | 19290 |
3×500 | 9.3 | 116.9 | 21990 | 12760 | 126.1 | 26630 | 17390 | 129.4 | 30750 | 21520 |
3×630 | 9.3 | 124.7 | 26350 | 14710 | 134.2 | 31340 | 19700 | 137.5 | 35730 | 24090 |
26/35kV单芯交联聚乙烯绝缘电力电缆26/35kV,1-core,XLPE Insulated PVC/PE Sheathed Power Cable
芯数×标称截面 Number and -sectional area mm2 | 绝缘厚度 Insulation thickness mm | YJV YJLV YJY YJLY | YJV22 YJLV22 YLV23 YJLV23 | YJV32 YJLV32 YJV33 YJLV33 | ||||||
电缆计算外径 Approx overall diameter mm | 电缆大重量 Cable weight,max kg/km | 电缆计算外径 Approx overall diameter mm | 电缆大重量 Cable weight,max Kg/km | 电缆计算外径 Approx overall diameter mm | 电缆大重量 Cable weight,max kg/km | |||||
YJV YJY | YJLV YJLY | YJV22 YJV23 | YJLV22 YJLV23 | YJV32 YJV33 | YJLV32YJLV33 | |||||
1×50 | 10.5 | 38.7 | 1727 | 1437 | 43.7 | 2600 | 2320 | 46.9 | 4030 | 3490 |
1×70 | 10.5 | 40.2 | 1980 | 1570 | 45.2 | 2890 | 2480 | 48.4 | 4380 | 3710 |
1×95 | 10.5 | 42.1 | 2335 | 1750 | 47.1 | 3270 | 2690 | 50.3 | 4830 | 3990 |
1×120 | 10.5 | 43.7 | 2650 | 1910 | 48.7 | 3600 | 2860 | 51.9 | 5250 | 4260 |
1×150 | 10.5 | 45.3 | 3016 | 2090 | 50.5 | 4020 | 3090 | 53.7 | 5730 | 4540 |
1×185 | 10.5 | 47.0 | 3377 | 2270 | 52.0 | 4410 | 3305 | 55.2 | 6160 | 4790 |
1×240 | 10.5 | 49.3 | 3996 | 2550 | 54.7 | 5110 | 3660 | 57.9 | 6940 | 5230 |
1×300 | 10.5 | 51.7 | 4733 | 2870 | 57.1 | 5900 | 4040 | 60.3 | 7810 | 5690 |
1×400 | 10.5 | 54.9 | 5723 | 3308 | 60.5 | 6340 | 4520 | 63.7 | 8990 | 6310 |
1×500 | 10.5 | 59.8 | 7068 | 3970 | 65.6 | 8380 | 5290 | 68.8 | 10500 | 7140 |
1×630 | 10.5 | 63.6 | 8418 | 4550 | 69.2 | 9790 | 5910 | 72.6 | 12080 | 7950 |
