- 商品名称：热电偶专用高温线
- 添加时间：2019-03-03 08:34:24
- 推荐度：

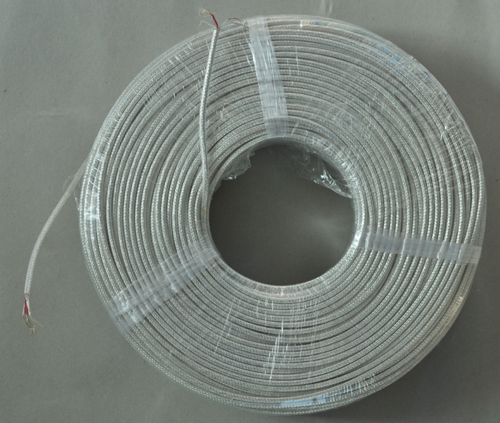

热电偶专用高温电缆
High Temperature Cable Special For Thermocouple
本产品为热电偶专用的高温连接线。产品具有优良的耐腐蚀性能，几乎不溶于任何有机溶剂，可耐油、耐酸碱等；具有优良的电绝缘性能，不吸潮，绝缘电阻大；具有阻燃性能。
The cable is a special high temperature connecting wire of thermocouple. It has many good features such as excellent corrosion resistance, almost insoluble in any organic solvents, oil resistance, acid resistance, better electrical insulating properties, moisture resistance, big insulated resistance, flame resistance and so on.
一、产品执行标准 企标
Executive standard: enterprise standard
二、型号
Type
| 型号 type | 名称 description |
| AKFFPXR200 | K型热电偶专用高温屏蔽电缆 High temperature shielding cable special for K type thermocouple |
| ANFFPXR200 | N型热电偶专用高温屏蔽电缆 High temperature shielding cable special for N type thermocouple |
| AEFFPXR200 | E型热电偶专用高温屏蔽电缆 High temperature shielding cable special for E type thermocouple |
| AJFFPXR200 | J型热电偶专用高温屏蔽电缆 High temperature shielding cable special for J type thermocouple |
| ATFFPXR200 | T型热电偶专用高温屏蔽电缆 High temperature shielding cable special for T type thermocouple |
三、使用特性
operating characteristics
1、工作温度：电缆导体长期工作温度为200℃。
Long term operating temperature of cable conductor is 200℃.
2、弯曲半径：电缆弯曲半径不低于电缆外径的10倍。
Bending radius of cable shall be no less than 10 times that of cable outer diameter.
3、阻燃特性：符合GB19666-2005。
Flame resistant characteristic shall meet the requirements speculated in GB19666-2005 standard.
四、性能参数表
Performance parameter
| 项目 Item | 单位 Unit | 技术指标 Technical Indices |
| 绝缘电阻 Insulated resistance | MΩ | 25 |
| 电压试验 Test voltage | V | 500V 1min 不击穿 Finished cable shall endure 500v voltage test for 1 min without puncture. |
五、结构尺寸
External dimension
| 型号 type | 规格 Specifications | 参考外径 Reference diameter |
| AKFFPXR200 ANFFPXR200 AEFFPXR200 AJFFPXR200 ATFFPXR200 | 1*2*0.2 | 3.5 |
| 1*2*0.3 | 3.9 | |
| 1*2*0.5 | 4.5 | |
| 1*3*0.2 | 3.8 | |
| 1*3*0.3 | 4.1 | |
| 1*3*0.5 | 4.7 | |
| AKFFPXR200 ANFFPXR200 AEFFPXR200 AJFFPXR200 ATFFPXR200 | 2*2*0.2 | 5.6 |
| 2*2*0.3 | 5.9 | |
| 2*2*0.5 | 7.0 | |
| 2*3*0.2 | 6.0 | |
| 2*3*0.3 | 6.5 | |
| 2*3*0.5 | 7.7 | |
| AKFFPXR200 ANFFPXR200 AEFFPXR200 AJFFPXR200 ATFFPXR200 | 3*2*0.2 | 6.0 |
| 3*2*0.3 | 6.4 | |
| 3*2*0.5 | 7.6 | |
| 3*3*0.2 | 6.4 | |
| 3*3*0.3 | 7.1 | |
| 3*3*0.5 | 8.3 |
六、电缆示意图
The figure of cable structure
七、注意事项
Notes
使用时严格防止电缆损伤，降低产品性能。
Cable damage and performance reduction are strictly prevented during installation.
八、交货要求
Delivery requirements
允许根据双方协议长度交货；长度误差不超过±5%。
Delivery length of cable depends on both agreements with length error allowance of ±5%.
